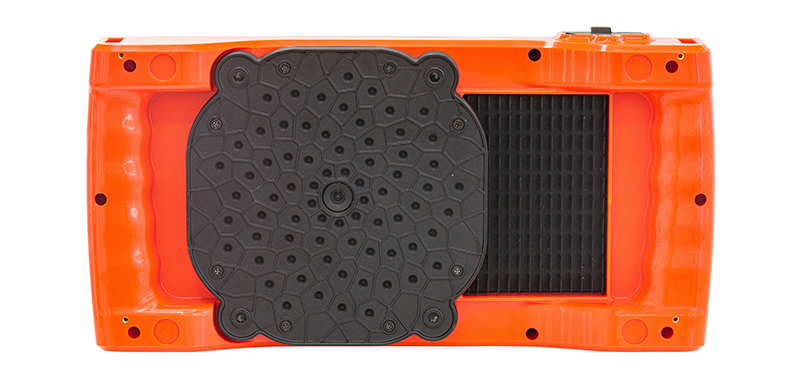

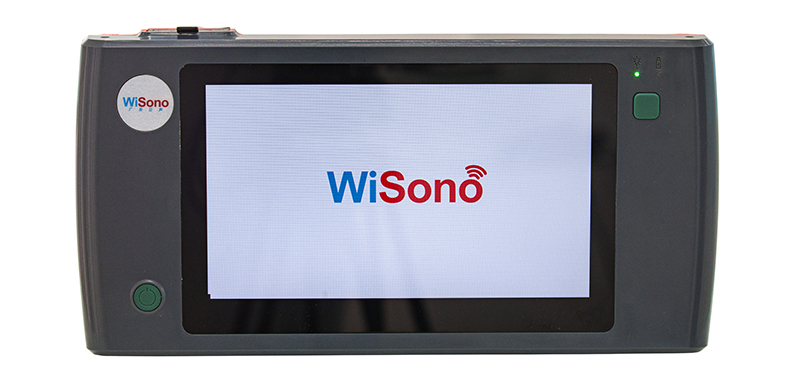

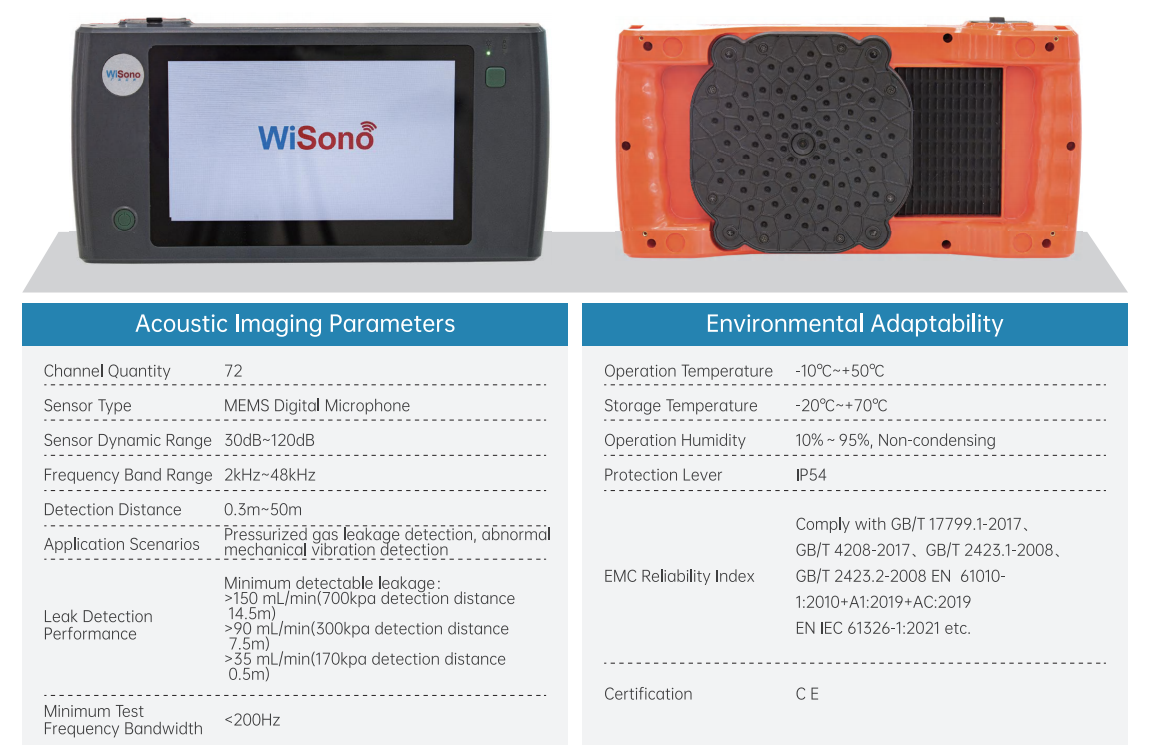

(AC-72/AC-128) Acoustic Imaging Camera

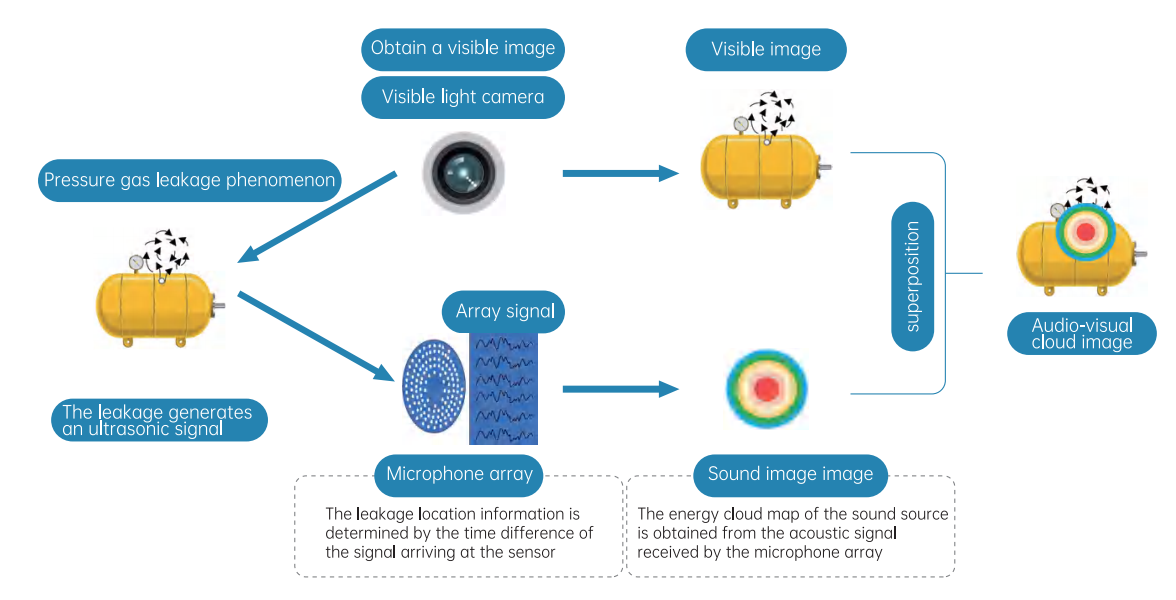

The Acoustic Imaging Camera combines acoustic images with video footage captured by a camera mounted on a microphone array, presenting a transparent overlay that allows for intuitive analysis of the tested object's condition. Utilizing acoustics, electronics, and information processing technology, this technique transforms sound into visible images, aiding users in comprehensively understanding sound fields, waves, and sources. It facilitates easy identification of the origins and causes of noises and vibrations in machinery, reflecting the operational stateof the device.

产品详情

Product Introduction

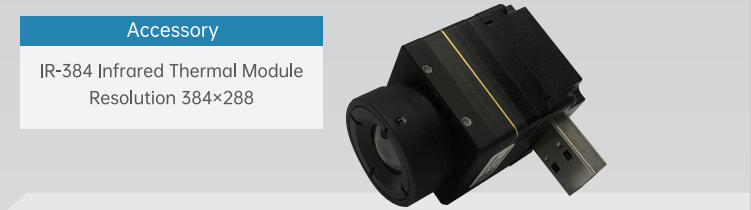

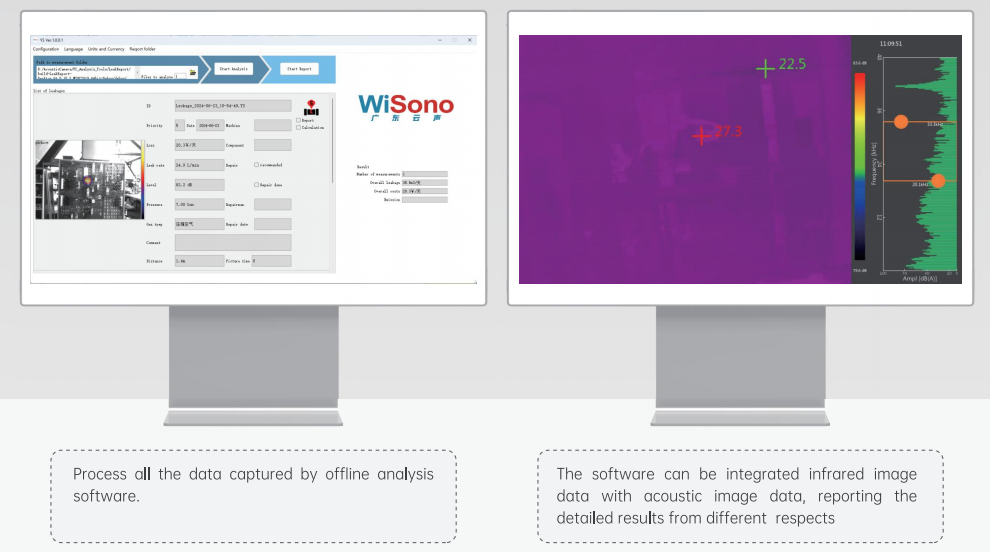

The integrated data acquisition system of our acoustic imaging camera can record key data during detection (such as acoustic wave intensity, amount of leakage, location of local discharge, etc.). Real-time acoustic wave capture and analysis, the localization error is less than ±3mm within a point distance. It supports automatic analysis, photo-taking and video recording functions to easily generate detailed reports. Supports PC-side software analysis, extending multimodal fusion (acoustic imaging with infrared imaging).

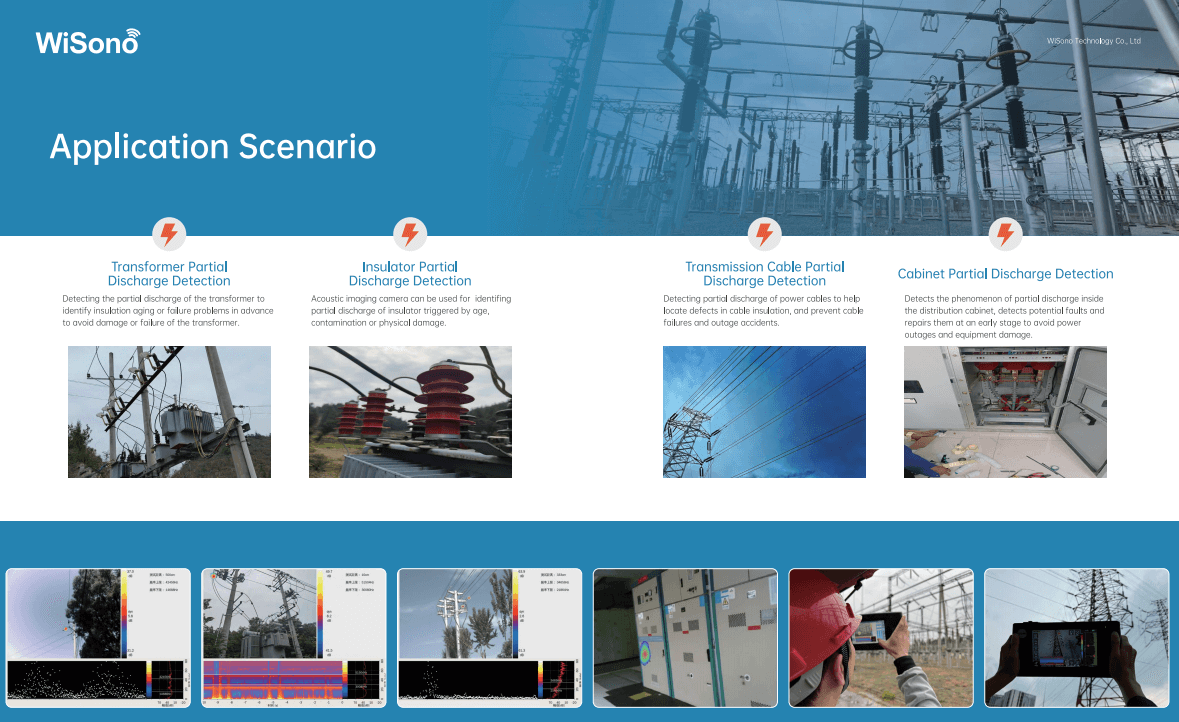

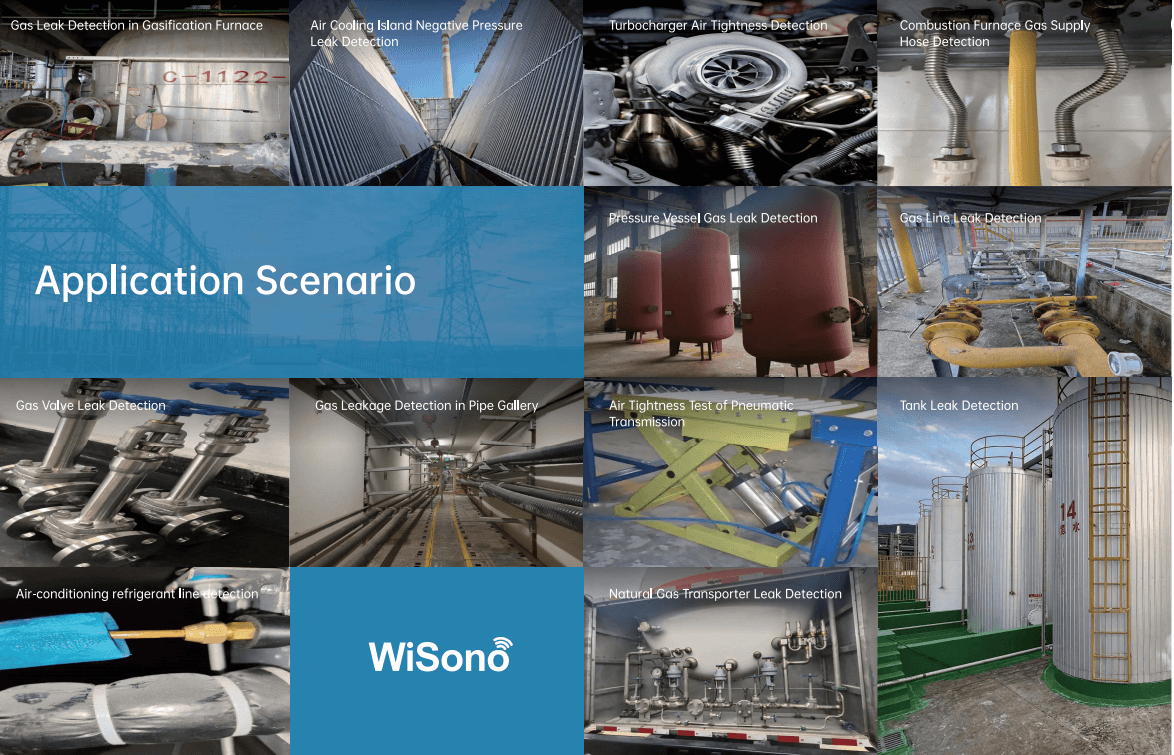

Our acoustic imaging camera is designed for routine detection and preventive maintenance, the equipment can effectively reduce equipment downtime and maintenance costs, suitable for enterprises with large inspection range and many risk points, improving the detection efficiency and safety of industrial and power systems.
