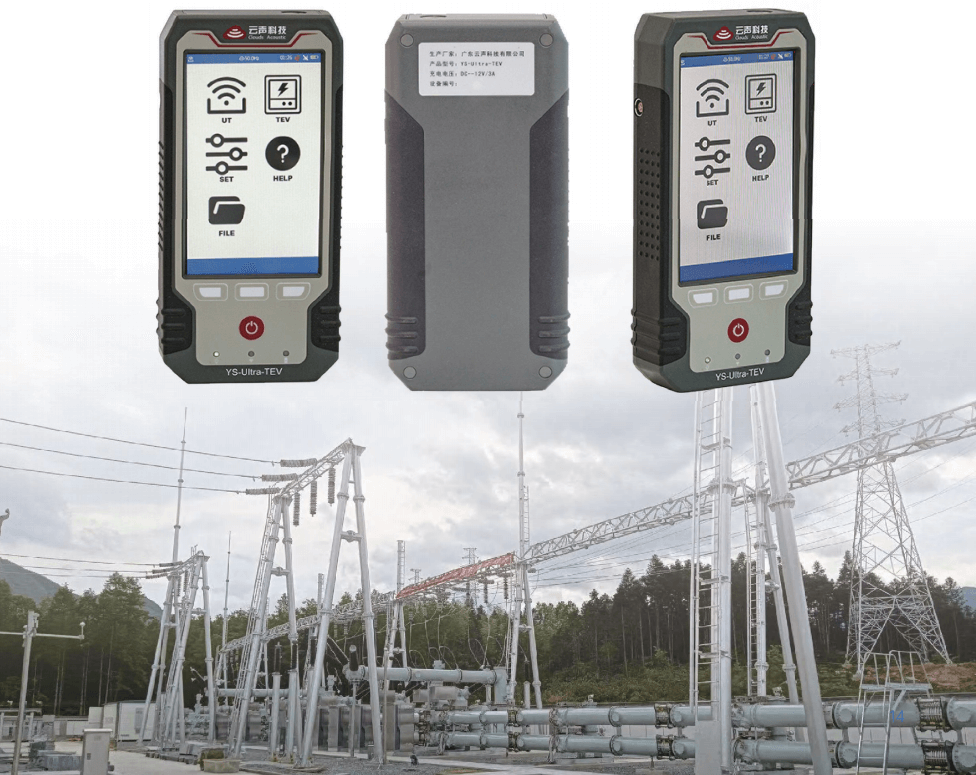

Product Overview

This instrument adopts acoustic and electric joint detection method, using transient ground wave (TEV), ultrasonic wave (AE)  and other sensors to comprehensively detect the partial discharge of power equipment, to achieve direct monitoring of power equipment such as transformers, switchgear and distribution cables.  The PD1 detector can evaluate the insulation condition comprehensively according to a variety of characteristics, detect the magnitude of partial discharge, and calculate the time difference between acoustic and electrical signals to achieve accurate discharge power location.

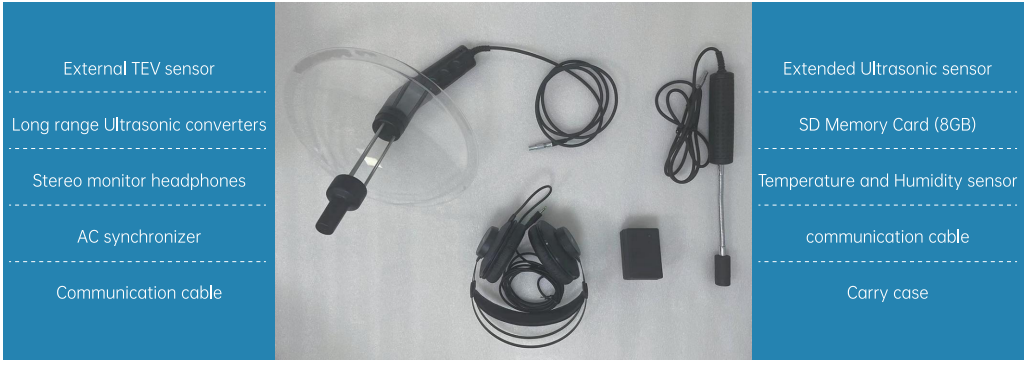

Package Checklist

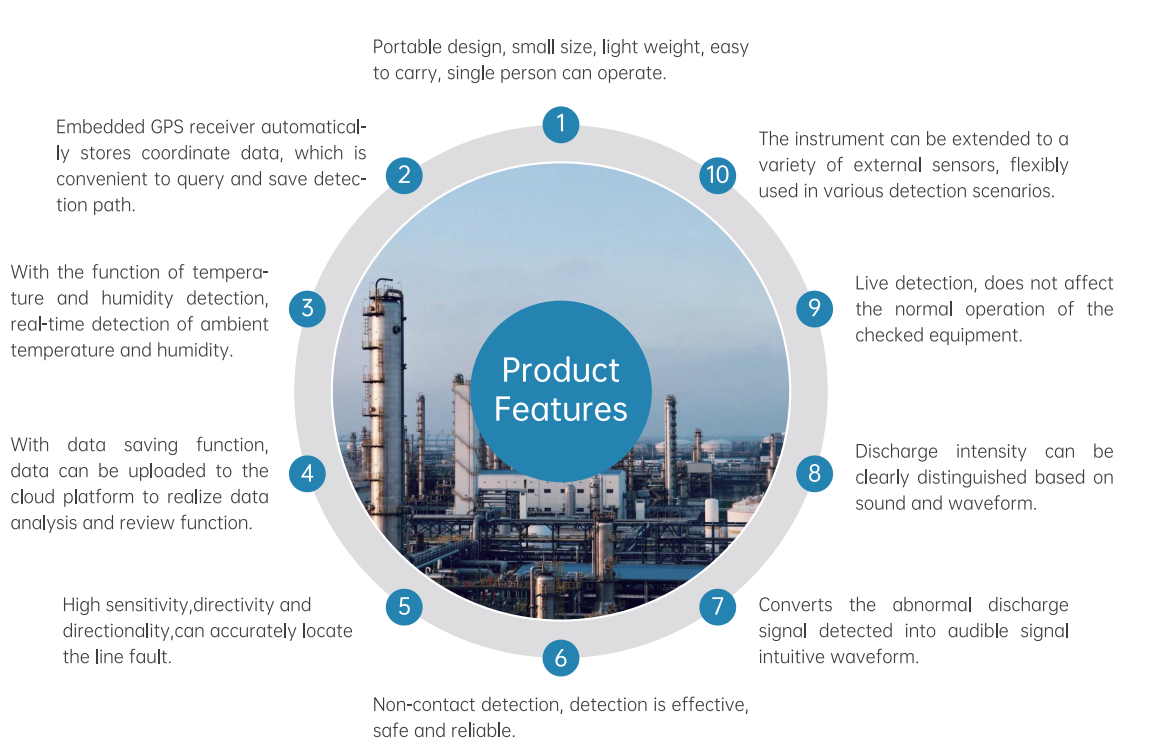

Product Features

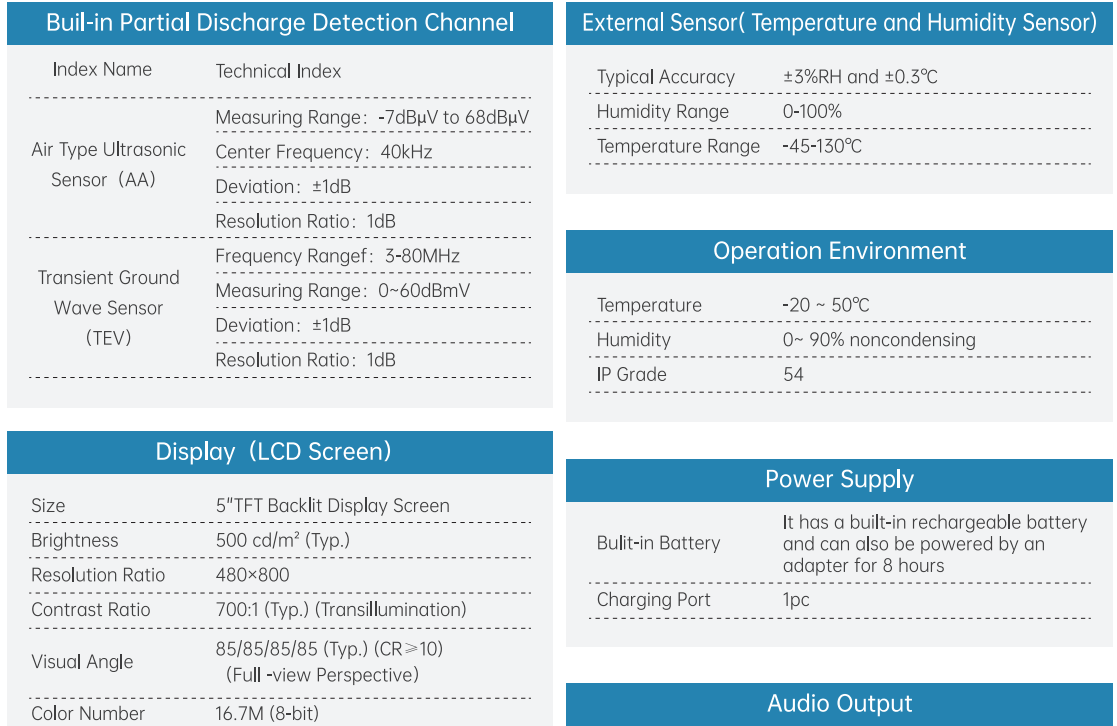

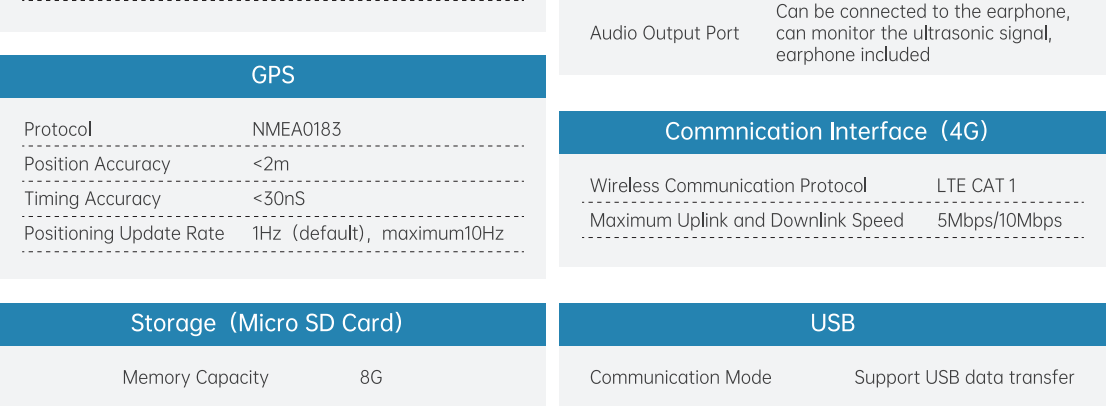

Technical Specification

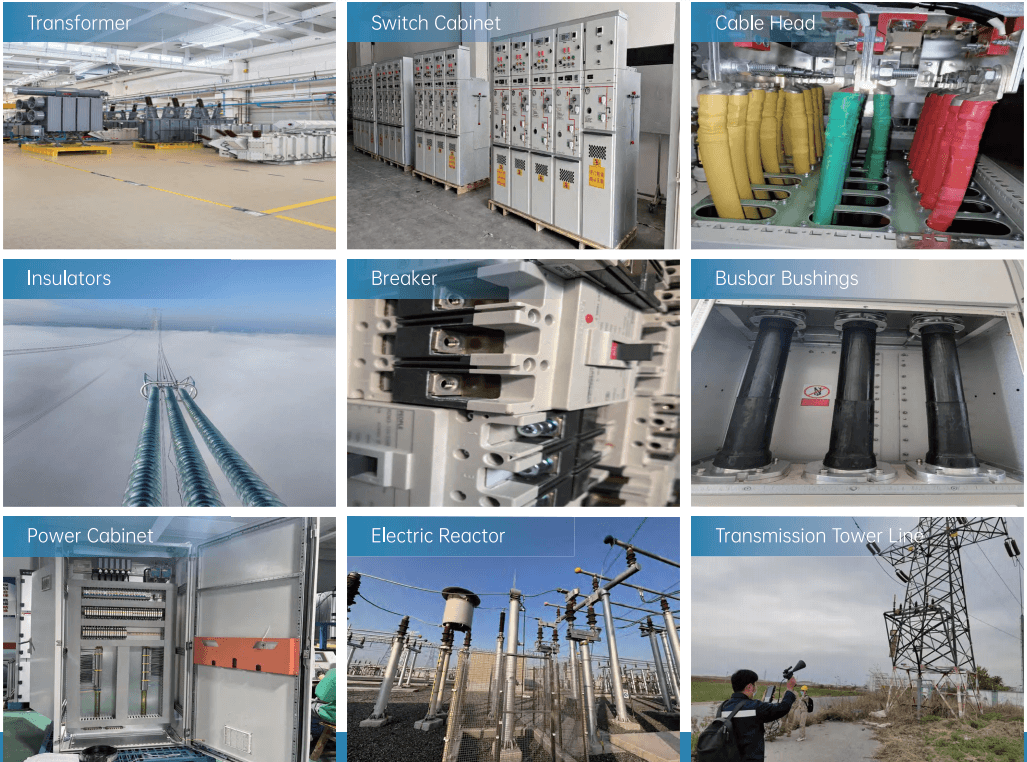

Application Scenario

Any form of local discharge detection and positioning, arc, electrical trace and corona discharge detection;  Electrical equipment transformer, switch cabinet, ring network cabinet, cable head, insulators, circuit breakers, busbar bushings, CT/PT, reactor, GIS/GCB, power cabinet, communication cabinet and other local discharge detection;  SF6 leak detection;  Pneumatic system leak detection;  Mechanical failure detection, etc.
